Appendix B

Error troubleshooting

A node with a red border, a timeout, a credential that stopped working, 429 Rate limit, a sub-workflow that cannot be found — this appendix is the quick reference for when you are stuck. Bookmark it: every time something looks wrong, come here, match the symptom, copy the fix, and get the workflow back to green.

Why this appendix exists

This appendix is not a teaching chapter — it is a "symptom to what you do next" quick reference. Chapter 17 showed you how to build error handling (Error workflow, Retry, Wait); this appendix covers the other half: once the error is already on screen, how you work back from the message to which kind of problem it is and what to do next.

How to use it:

  • Bookmark it — when a workflow dies, the first thing you do is come back to this page.
  • Match the symptom, not the literal wording — n8n shows the same error as ETIMEDOUT one time and Request timed out the next, so read the "Symptom" line in each section below and pick the closest match.
  • Run the three quick checks first — the next section. Eight out of ten problems never need the rest of this reference; three steps locate them.
Concept: 90% of n8n's error messages are the outside system talking back to you — Slack says your token expired, Google Sheets says rate limit, the API you called says 404. Every section here tells you who is actually at fault, so you do not waste effort editing your own node.

When something fails, run these three quick checks first

Whatever the error, spend 30 seconds on these three things first; eight times out of ten they locate the problem straight away:

  1. Is the workflow Active (the toggle in the top right is green)?

    Open the workflow and look at the Active toggle in the top right. If it is grey (Inactive), the Schedule Trigger will not run and the webhook only accepts the Test URL — this is the number-one cause of "nothing is wrong, but nothing happens either". Switch it to green (Active).

  2. Is the latest entry on the Executions page red or green?

    Executions in the main sidebar (or the Executions tab inside that workflow). Red = it failed; open it to see which node blew up and what the error message says. Green = it ran fine, so nothing is actually broken and you may have misread the situation (the schedule has not come round yet, for example).

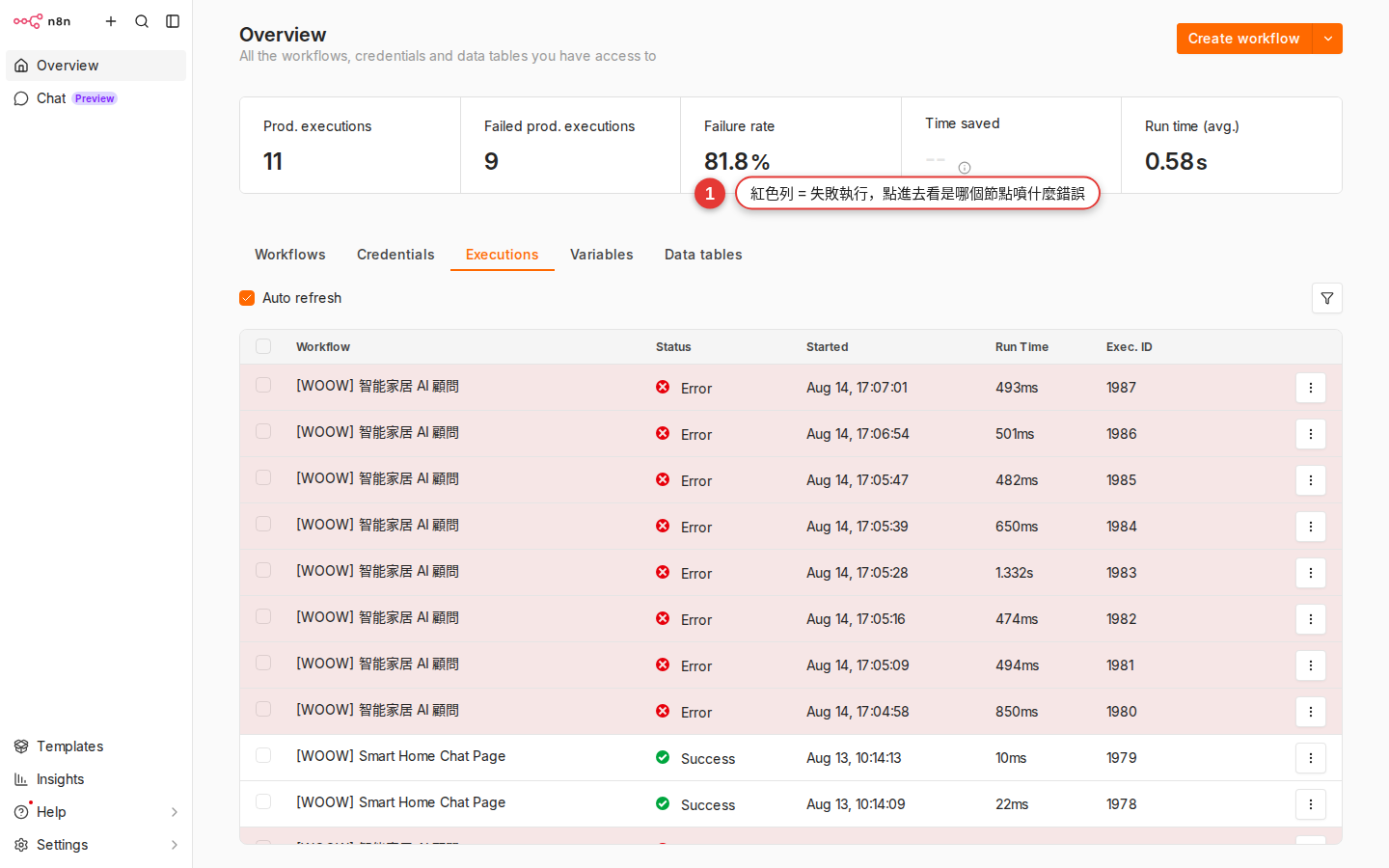

    The n8n Executions history page, listing the status and time of every run, with red rows for failures
    Figure B-1 Executions history: one row per run, red = failed. Open a row to see which node blew up and what the error message said.

  3. Does that node's credential still work?

    Credentials in the sidebar, find the credential that node uses, open it, and look for the Reconnect or test button in the top right. Run it once and see whether the green check is still there. Eight out of ten cases of "it ran for ages and then started failing" are an expired credential.

Tip: only start matching symptoms once all three steps have left you with nothing. These three rule out more problems than every section below put together.

Symptom 1: a node with a red border

Symptom: you open the workflow canvas and one node's border is red (not a red connection — the node's own border), or there is a red exclamation mark in its top-right corner. Open the parameter panel and some fields carry a note in red.

Likely causeHow often it happensHow to spot it
No credential selected, or it points at a deleted one About 60% The Credential field at the top of the parameter panel is blank, or shows No credential selected
A required field is empty About 25% Red text under a field says This field is required
The node version moved on and the old parameters no longer map About 10% A yellow "Newer version available" banner at the top of the parameter panel, or a parameter field has disappeared
Expression syntax error (an unclosed brace, for example) About 5% Red text under the Expression field, and the preview shows [Expression error]

The fix:

  1. Click the node to open its parameter panel

    See exactly which field is in red — n8n tells you outright what is missing.

  2. If the Credential field is blank, fill it in first

    Pick an existing one from the dropdown, or press + on the right to create one on the spot (see Chapter 13).

  3. Fill in every required field

    Every field with red text under it has to be filled. Mixing up Expression mode and Fixed mode throws this error too.

  4. If it is a version upgrade, add the node again

    Delete the old node, press Tab to open the nodes panel, search for the same node name (Slack, say), then pick the new version and rewire it. n8n does not carry your parameters over, so you usually have to fill them in again.

Tip: the Function node was renamed Code node in newer n8n, so after you import an older workflow the Function node shows a red border and prompts you to upgrade. Follow the UI prompt and press "Update"; in most cases it migrates by itself. Once it has, verify it again the way Chapter 5 taught you.

Symptom 2: 401 Unauthorized

Symptom: a red execution, you click the node, and the error message contains 401, Unauthorized, Invalid credentials, Authentication failed. Most common on nodes like HTTP Request, Slack, Gmail and Google Sheets.

What it means: their API is saying "who are you? I do not know you" — you did not get the address wrong, authentication failed. Three possibilities:

Likely causeTypical case
The credential was wrong from the start A character missing from the pasted API key, a mistyped password, a Bearer token without the Bearer prefix
The OAuth token expired and was never refreshed A Slack, Google or Notion OAuth authorization runs for weeks and then suddenly 401s — usually the refresh token expired too, or was revoked
The other side revoked the API key A colleague pressed "regenerate key" in the API console, a rotation policy swapped the key automatically, or a security system flagged something and disabled it

The fix:

  1. Credentials in the sidebar, then find that credential

    Work back from the name in the node panel's Credential field.

  2. OAuth type: press Reconnect and authorize again

    Their consent window (Slack / Google) opens; walk through it, then come back and look for the green check.

  3. API key type: generate a new key in their console and paste it back

    For example, Notion → Settings → Integrations → generate a new secret; paste it into that n8n credential → Save → press Test.

  4. Go back to the workflow and run it once more

    Press Retry on the Executions page (top right of that execution), or just trigger it by hand with Execute Workflow.

Warning: do not turn on Retry on fail for a 401 — 100 more calls hit the same expired credential and only burn time and rate-limit quota. The right answer for this error is an Error workflow that tells you to deal with it by hand.

Symptom 3: 403 Forbidden

Symptom: the error message contains 403, Forbidden, Insufficient permissions, Missing scope.

What it means: they know who you are (the credential is fine), but they are saying you do not have permission to do this. The difference from 401 matters:

Status codeWhat it meansWhere to fix it
401 Unauthorized They do not know who you are The credential (reconnect it, or swap the key)
403 Forbidden They know who you are, but you are not allowed to do this Permissions in their console, or the OAuth scope

Common situations:

  • You granted only the read scope during the OAuth consent, but the workflow needs write — Google Sheets authorized read-only while your node is set to Append Row, for example.
  • Your company's Google Workspace admin turned off access to an API (the Gmail API not being open to service accounts, say).
  • The Slack bot was never invited into the channel — it has chat:write, but it cannot post to a channel it is not in.
  • The API console downgraded that key's permissions.

The fix:

  1. Read the missing scope name out of the error message

    They usually name the missing scope outright, for example Missing scope: files.write.

  2. Back to the Credentials page, press Reconnect, and grant more scopes

    The OAuth consent window lists the permissions it is asking for — grant more of them this time.

  3. If it is not OAuth, add the permission in their console

    Slack: invite the bot into the channel. Notion: share the page with the integration. Google Workspace: ask IT to open it up.

Symptom 4: 404 Not Found

Symptom: the error message contains 404, Not Found, Resource not found. Most common on the HTTP Request node — you called an address that does not exist on their server.

90% of the time the URL is misspelled. Checklist:

CheckCommon mistake
URL typo /user/ vs /users/, a missing s, one / too many
API version prefix The docs say /v1/messages and you only called /messages
Wrong environment Calling the production URL with a sandbox credential (or the other way round)
The ID an expression filled in is empty The URL is /users/{{ $json.id }}, but there is no id field upstream, so the call goes to /users/undefined
The API really is gone, or moved The endpoint in the old docs is deprecated; go and read their current docs

The fix:

  1. Paste the URL into Postman or curl and call it by hand

    Same headers, same auth, and see whether you get a 404. If Postman 404s too, the URL is the problem; if Postman gets a 200 and n8n gets a 404, an expression in n8n filled in the wrong value.

  2. For the part an expression fills in, open the node's Output panel and check

    Look at the previous node's actual $json and see whether the field you referenced is there. Chapter 14 showed you how to read it.

  3. Confirm the endpoint in their official API docs

    Search Google for "[service name] API [action]" and find the current official docs — third-party blog posts are often out of date.

Tip: make it a habit when you write an HTTP Request node: get the call working in Postman first, then paste it into n8n. It saves an enormous amount of debugging time.

Symptom 5: 429 Too Many Requests

Symptom: the error message contains 429, Too Many Requests, rate limit exceeded, quota exceeded.

What it means: you are calling too fast, and the SaaS on the other end is protecting itself by asking you to slow down. You did nothing wrong — your pace simply does not match their rate-limit policy.

Three fixes (you can combine them):

ApproachWhen it appliesHow to set it
Add a Wait node to slow down Processing many items in bulk (sending 500 customers one notification each, for example) Add Wait 1 second after each item, or wait once every N items
Batch it with Split In Batches A large amount of data arrives at once (reading 1000 rows from a sheet, for example) The Split In Batches node → batch size 10 → a Wait inside the loop
Turn on Retry on fail for the node The occasional 429 (mostly fine, but you hit one now and then) Node Settings → Retry On Fail = ON → Max Tries 3 → Wait Between Tries 5000ms or more

The typical combined pattern:

Google Sheets (read 500 rows)
    ↓
Split In Batches (batch size = 10)
    ↓
HTTP Request (call their API)  <- Retry on fail enabled, 5000ms
    ↓
Wait (1 second)
    ↓
(back to Split In Batches for the next batch)
Concept: rate limits differ enormously between SaaS products — a Slack tier 1 method is about 1 call per minute, Notion averages 3 requests per second, Gmail allows 250 quota units per second. If you do not know their limit, assume 1 req/sec and speed up once it runs smoothly. A 429 response also often carries a Retry-After header (a number of seconds, or an HTTP date) — the HTTP Request node can read $response.headers['retry-after'] on the Error output and decide how long to wait from that, which is more precise than sitting out a fixed number of seconds.

Symptom 6: 5xx errors and timeouts

Symptom: the error message contains 500 / 502 Bad Gateway / 503 Service Unavailable / 504 Gateway Timeout, or ETIMEDOUT / ECONNRESET / Request timed out / Execution timed out / Socket hang up.

What it means: almost none of these are your fault — their server is down or overloaded, the network cannot get through, or you waited for them so long that you gave up. To tell which:

What the error looks likeWhat it isHow to fix it
500 / 502 / 503 / 504 Their server is temporarily down or overloaded Wait a few minutes, then press Retry on the Executions page; check their status page; turn on Retry on fail for the node
ETIMEDOUT / Request timed out (one node) Their API is too slow and went past the node's timeout setting Raise the node's Add Option → Timeout (to 30000ms, for example)
Execution timed out (the whole workflow) The workflow ran too long and was cut off as a whole Raise Workflow Settings → Timeout Workflow; the real fix is to break it up into sub-workflows
ECONNREFUSED / ENOTFOUND The network cannot reach them (bad DNS, a firewall in the way) Check the URL spelling, whether their IP is on your allowlist, and whether the company firewall blocks outbound traffic

The golden pattern for 5xx:

  1. Run it again first

    Open that entry on the Executions page and press Retry in the top right. Most 5xx errors clear up on their side within minutes.

  2. Check their status page

    Search Google for "[service name] status". Common ones: status.slack.com, www.githubstatus.com, www.google.com/appsstatus. If there is an outage, wait for them to fix it; if there is not, keep digging.

  3. Turn on Retry on fail for the node

    Most 5xx errors are transient. Turn Retry on (Max Tries 3, Wait Between Tries 2000ms) and it usually clears itself — you will not even hear about it afterwards. The most useful pattern Chapter 17 teaches.

Tip: timeouts often turn up alongside 429s — you call too fast, they overload, and they start answering slowly or not at all. Fix the 429 first and the timeouts usually go with it.
Warning: the same 5xx error lasting more than an hour is unlikely to be transient any more — their API may have changed, your request may be triggering a bug on their side, or they may be down for good. Cross-check by sending the same request from Postman, then decide whether to file a bug or change the workflow. Separately, 401 also tends to appear out of nowhere after a workflow has run fine for weeks — that is an expired credential (the OAuth refresh token ran out, the API key was revoked, a company password-rotation policy kicked in). For the fix, see the 401 section above: Credentials → Reconnect → Test, and a green check is all you need. You can put the expiry date in the credential name (Slack (renew 2027-01), for example) and swap it out proactively before it lapses.

Symptom 7: the webhook never arrives / Webhook not found

Symptom: an outside system calls the Webhook URL but the workflow does not move — no new record on the Executions page, no Slack message, nothing at all. Or their HTTP client gets a 404 Webhook not registered / The requested webhook is not registered error straight back.

Three common causes:

CauseHow to tellHow to fix it
The workflow is not Active The toggle in the top right is grey (Inactive) Switch it to green (Active)
They are calling the Test URL, not the Production URL The Test URL path contains /webhook-test/ and the Production URL path is /webhook/; hand them a URL with -test in it and they run into "it listens once, then stops" Give them the Production URL (switch to the Production URL tab at the top of the node panel and copy it)
The network or a firewall blocks it curl-ing the URL yourself does not get through either On self-hosted n8n, check the reverse proxy configuration, the port you expose, and the SSL certificate

Debugging steps:

  1. The Webhook node, then copy the Production URL

    Not the Test URL. The difference is in the path: the Test URL is /webhook-test/xxx, the Production URL is /webhook/xxx. The Test URL only listens while you have pressed Listen for Test Event; once the workflow is Active, only the Production URL counts.

  2. Call it once with curl from outside your network

    Use your phone's hotspot so you do not go through the company LAN: curl -X POST https://your-n8n.com/webhook/xxx -d 'test'. A 200 back means the URL works; no connection means a network problem.

  3. curl works but nothing shows in Executions

    Check that the workflow is Active, that the Webhook node's HTTP Method (GET vs POST) matches what they use, and that the path is not misspelled.

  4. curl works, the workflow ran, but nothing downstream moved

    That is not a webhook delivery problem — it is a downstream node. Go back to Executions and see which node failed.

Warning: the Test URL is only alive once you press Listen for Test Event on the canvas, and it closes itself after one call or about 120 seconds; call it again and you get Webhook not registered back. When you set the URL up for an outside system, always use the Production URL (path /webhook/, no -test), and the workflow has to be Active. This is the number-one gotcha with the Webhook node.

Symptom 8: sub-workflow not found / an error inside the sub-workflow

Symptom A (not found): the Execute Workflow node reports Workflow not found, Could not find workflow with ID.

Symptom B (it blew up inside and the parent cannot say where): a node inside the sub-workflow failed, and the parent's Execute Workflow node shows the same Error executing sub-workflow or Problem in sub-workflow either way — you cannot see which node blew up, so you have to go back to Executions and open the sub-workflow's own entry.

What it means: the sub-workflow this Execute Workflow node was pointed at cannot be found any more — it was deleted, moved to another workspace, or its workflow ID changed.

Common causes:

  • Someone deleted the sub-workflow (by accident).
  • The sub-workflow moved from Personal to Workspace (or the other way round): the ID stayed the same, but access changed.
  • You exported from environment A (test, say) and imported into environment B (production, say) — the workflow ID it referenced does not exist in B.
  • The sub-workflow was replaced by a new version and the old ID was deleted.

The fix:

  1. Open the Execute Workflow node

    See what the Workflow dropdown currently points at. If it is blank, or red text says it cannot be found, this is your problem.

  2. Pick the right sub-workflow from the dropdown again

    Choose the one that exists now — if the name is right, select it.

  3. Save the parent workflow

    Ctrl+S to save, and the workflow ID mapping refreshes.

  4. If you moved environments, sweep every node after the import

    Once a workflow exported from A lands in B, every Execute Workflow node has to be re-picked by hand; n8n does not map the IDs for you.

  5. Symptom B: read the sub-workflow's error in the sub-workflow's own Executions

    The Execute Workflow node's error message is only a wrapper — the real cause is in the sub-workflow's own execution record. Switch to the sub-workflow's name at the top of the Executions page and open the entry with the matching timestamp. By default an error in a sub-workflow bubbles up and fails the parent too; if you do not want the parent to die with it, set an Error workflow on the sub-workflow, or turn on Continue On Fail in the parent's Execute Workflow node Settings — then the sub fails but the parent keeps running.

Symptom 9: an expression returns undefined

Symptom: undefined, [object Object] or an empty string turns up in a Slack message or an email body — the workflow did not fail, the data just went in wrong.

What it means: the field path you referenced in the expression does not exist in the actual $json. Three typical mistakes:

The wrong waySymptomThe fix
The upstream node never emits that field {{ $json.name }} → undefined Open the upstream node's Output panel, see what the field is really called, and fix the expression
The path is mistyped (case, underscores) The API returns userName and you wrote username Copy the exact field name from the Output panel (or click it with n8n's fx picker)
The item is an array but you read it as an object Upstream is [{id:1}, {id:2}] and {{ $json.id }} gives you undefined Change it to {{ $json[0].id }}, or put a Split Out node in front to break the array into separate items

Debugging steps:

  1. Open the red entry on the Executions page

    Or run Execute Workflow by hand once to reproduce the error.

  2. Click the node before the one that misbehaved

    Look at what its Output holds — is the JSON {name: "..."}, or {user: {name: "..."}}, or [{name: "..."}]?

  3. Re-pick the field with the fx picker

    The fx button beside the Expression field opens the picker; click the field you want in the upstream node's real output. An expression the picker writes is always correct.

  4. Add a Set node to supply a default

    If the upstream leaves the field out now and then, put a Set node in front to fill in a default value (name = {{ $json.name || "Anonymous" }}, for example) so nothing downstream prints undefined again.

Tip: an expression that prints [object Object] usually means you dropped a whole object in as a string ({{ $json }}, for example). To see the whole object use {{ JSON.stringify($json) }}; for one field use {{ $json.field }}.

Other common pitfalls

The nine above all come with a clear error message. The ones left are the "no obvious error, but something is off" kind — how to tell, and how to fix them:

SymptomCauseHow to fix it
The whole n8n site will not open The n8n instance is down; or your network cannot reach it; or the SSL certificate expired Try your phone's hotspot first, to rule out your own network; if it still fails, ask IT — usually a self-hosted container died and needs a restart
The Executions page is empty (1) the workflow has never really run; (2) the retention window (EXECUTIONS_DATA_MAX_AGE, measured in hours, default 336 = 14 days) has passed and the old records were purged; (3) a filter is hiding them; (4) EXECUTIONS_DATA_SAVE_ON_SUCCESS / _ON_ERROR is off, so that class of run is not kept Trigger it once by hand with Execute Workflow; clear the filter at the top; ask IT to check the retention setting and the save policy
Two people edit the same workflow at once and one person's changes vanish n8n has no built-in merge — whoever saves last overwrites the earlier person's edits wholesale Agree that only one person edits at a time; export a JSON backup before editing an important workflow; keep the JSON in Git for version control
You broke it and want to roll back, but there is no versioning n8n Community has no native workflow versioning Restore from your most recent backup; make a habit of exporting a JSON copy before a big change; track important workflows in a Git repo
The cron schedule does not run when it should The timezone is wrong — the n8n instance's timezone is not the one your cron expression assumes Set Timezone explicitly in Workflow Settings; or set the Timezone field inside the Schedule Trigger itself
Execute Workflow succeeds by hand, but the scheduled run fails A manual run carries your signed-in session's permissions, while a scheduled run uses the workflow owner's — and the owner account's credentials are incomplete Change the workflow owner to an account that has all the credentials; or share every credential the workflow uses with the workspace
Warning: the Community edition really has no workflow versioning, and it is a common inconvenience. For every important workflow in service, export the JSON by hand before each big change and keep it in Git (or at least in a folder on your own computer), with the date in the file name. That is the only reliable way to roll back.

How to ask for help the right way

If you have worked through the quick reference and are still stuck, it is time to ask someone. Three channels, ordered by speed and formality:

ChannelURL / whereResponse timeBest for
Internal Slack #n8n-help Your company Slack (if IT set one up) Minutes to hours Your own instance's settings, shared credentials, the traps colleagues have already hit
n8n Community forum https://community.n8n.io/ 1 to 3 days How to configure a node, how to write an expression, how-to questions
n8n GitHub Issues https://github.com/n8n-io/n8n/issues 1 week to several weeks Formal bug reports (with full reproduction steps)

Include these when you ask, or nobody can help you:

  • The workflow name (internal Slack only; do not post your company name on the forum)
  • A screenshot of the error in Executions (capture that node's whole error panel)
  • The n8n version number (bottom-right corner; the forum always wants it)
  • What you have already tried (so nobody tells you to do what you did an hour ago)
  • Reproduction steps (required for GitHub Issues)

Never post:

Danger: when you post outside the company (the Community forum, GitHub, Stack Overflow), never post: the actual values in a credential (API key, password, token), internal API endpoint URLs, customer data, employee personal data, Slack channel IDs. Before you post workflow JSON, open the file and replace every sensitive value with REDACTED — an n8n workflow export does not carry credential values by default, but it does carry URLs and internal API endpoints.
Tip: before you ask, search Google with your error message as the keywords once. Eight out of ten questions on the n8n community forum have been asked already — finding the answer beats opening a new thread.

FAQ

How quickly does official n8n support reply?
There are two kinds. The Community forum (https://community.n8n.io/) usually gets you an answer in 1 to 3 days, but the person answering is a community volunteer rather than an n8n employee, so quality varies. GitHub Issues usually takes 1 week to several weeks; the n8n team handles it directly, but only for bugs, not how-to questions. Only the paid Cloud / Enterprise editions come with an official SLA on response time (Cloud Pro is usually within 24 hours, Enterprise faster). Internally, the fastest route is asking a colleague on Slack — the trap you are in is usually one somebody else already hit.
Does the company have a paid support plan?
It depends which n8n edition your company subscribes to. Community (the free self-hosted edition) — no official support, only the community forum. Cloud (Starter/Pro/Enterprise) — the paid editions have official email support, and Pro and above have an SLA. Enterprise Self-Hosted — you get a dedicated CSM. If you are not sure which you are on, ask IT. Most companies run Community self-hosted or Cloud Pro.
Who is responsible when the internal n8n goes down?
On self-hosted, the IT / DevOps team. What you can do yourself: work out whether the n8n site will not open at all (the instance is down) or you can sign in but one workflow errors (a workflow problem). For the first, ask IT immediately; for the second, work through this appendix's quick reference yourself first. IT will usually not debug the logic of an individual workflow for you — that is the user's job.
How do I report a bug to n8n?
Go to https://github.com/n8n-io/n8n/issues → press New issue → pick the Bug report template. Include: (1) the n8n version number, (2) what you did (reproduction steps, written out one by one), (3) what you expected to happen, (4) what actually happened (paste the error message in; do not just screenshot it), (5) a trimmed-down workflow JSON (sensitive values removed, only the minimum that reproduces the bug). A bug report without a full reproduction usually gets closed with no follow-up.
What do I do when I cannot make sense of an error message in English?
Two tricks. (1) The first few characters of an error message are usually an HTTP status code (401, 404, 500 and so on) — match that against the sections in this appendix. (2) Copy the whole message into ChatGPT / Claude and ask what the error means and what you should do; AI is accurate at explaining technical messages like these. Just do not paste your credential values in with it.
An execution is stuck on running and will not stop — what now?
First see which node it is sitting on — usually a Wait node (set to a long time, or in On Webhook Call mode waiting for an outside callback), or an HTTP Request node (their server is neither answering nor timing out). To force it: on the Executions page, choose Stop on the right of that entry. If Stop does nothing, ask IT to kill it from the backend (queue mode may be stuck).
I made a few edits and suddenly every node is red — how do I recover?
Most likely n8n was upgraded and the whole set of nodes needs a version bump. Stop editing first — press Ctrl+Z to undo what you just did. If they are still red: (1) the banner at the top usually says "Newer version available" — press Update; (2) hover over each node in turn for its hint; (3) worst case, restore this workflow from a backup. Which is why this appendix keeps saying it — export a JSON copy before any big change.
The error n8n shows does not match their docs — which do I trust?
Their docs. n8n only wraps the error message their API returned and passes it on — the real authority is the SaaS on the other end. For example, the Slack node shows invalid_auth; search that string and Slack's official API docs give you the full cause and the fix. It is even more obvious with the HTTP Request node, where the error message is their raw response.
