Chapter 17

Error handling: error workflow / retry / wait

A live workflow fails overnight and nobody tells you automatically — unless you strung a net under it beforehand. This chapter covers three things: getting a Slack message when a whole workflow dies (Error workflow), letting a single node retry itself when it fails for a moment (Retry on fail), and pausing on purpose so you do not call an API fast enough to get blocked (the Wait node). Do all three and your workflow finally counts as one you can "just leave running".

Why error handling has to be in place before you go live

Chapter 10 showed you how to switch a workflow from Manual to Schedule so it runs by itself at 8:00 every morning; Chapter 16 showed you how to split, merge and batch. Your workflows look clever by now — until the day you notice:

  • Monday, 9 am: your boss asks "why didn't last week's daily report go out?" You open it and find the schedule failed quietly last Wednesday, and nobody knew.
  • Payday: the workflow calls an outside API 100 times at once, the other side rate-limits half of them, and half the staff never get their notification.
  • Early one Saturday: the other system hiccups for 30 seconds, your workflow happens to run right then and fails once — when a single retry would have made it work.

n8n has a ready answer for each of the three: an error workflow covers the first, retry covers the third, wait covers the second. They are not an either/or — they are three layers of insurance a production workflow should have at the same time: tell you it broke, let a single point rescue itself, avoid hammering the other side. This chapter covers all three, and only after it are your workflows what you would call production grade.

Concept: Error handling is not something you deal with "once it actually breaks" — you add it while you are writing the workflow. By the time you go back to bolt an error workflow on, you have usually missed three alerts already.

What each of the three error-handling layers covers

Lay the three cards on the table first — the names look alike, but they work at completely different levels:

MechanismWhich level of failure it catchesWhat it doesWhen to use it
Error workflow The whole workflow dies (any node fails for good) Triggers another workflow built to handle errors (Slack you, for example) Every production workflow should be bound to one
Retry on fail (node level) One node fails (an HTTP Request dies, say) That node retries itself N times, with a gap between tries An API that acts up now and then, a network blip, mild rate limiting
The Wait node It does not catch failures — it prevents them The workflow stops here for X seconds / until a given time / until an external callback Avoiding a rate limit from calling too fast, spacing out notifications, waiting for the other system to finish

How they relate: Wait is prevention beforehand, Retry is self-rescue in the moment, and the error workflow is recovery afterwards. A live workflow should have all three; drop one and you lose a line of defense.

Tip: Beginners mix these up. Retry means "this one node tries again by itself"; an error workflow means "the whole workflow has already given up". Five failed retries → the workflow dies → only then is the error workflow called.

What an error workflow is — a workflow built to catch failures

An error workflow is a separate, standalone workflow — not a setting, a whole workflow. It looks like any other workflow of yours, except its first node has to be an Error Trigger.

Here is how it works:

  1. You build an error workflow first

    Put an Error Trigger first, then wire Slack / email / Discord / a database behind it to answer "who gets told when something breaks, and where does it get logged".

  2. Every other workflow "points at" this one as its error workflow

    In each production workflow's Settings, set Error Workflow to the one you just built.

  3. A workflow fails → n8n triggers the error workflow automatically

    The Error Trigger node receives the failed workflow's name, the time, the error message and which node died, and hands it to the nodes downstream.

The Error Trigger node puts the error information into $json. The fields you will use most:

FieldWhat it meansExpression
The failed workflow's name Which workflow died {{ $json.workflow.name }}
The failed workflow's ID Handy for linking straight into it {{ $json.workflow.id }}
The error message n8n's own description of the error {{ $json.execution.error.message }}
Which node it died at The node that failed {{ $json.execution.lastNodeExecuted }}
Execution URL Click straight through to that execution record {{ $json.execution.url }}
Warning: The Error Trigger node fires only because another automatically triggered workflow died (Schedule / Webhook / Event Trigger). Running the error workflow yourself with Execute Workflow, or a manually run parent workflow failing, does not start the Error Trigger (the docs say it outright: "You can't test error workflows when running workflows manually"). To test it, take a workflow that is certain to fail, set it Active with a Schedule, and let it run and die on its own.
The hidden default: The docs add one behavior that is easy to miss — "If a workflow contains the Error Trigger node, by default, the workflow uses itself as the error workflow". In other words: a workflow that contains an Error Trigger node, if it is Active and gets triggered automatically itself, calls itself by default when it fails. So do not put a Schedule or Webhook Trigger in your Error Handler workflow (that creates a confusing self-reference) — leave the Error Trigger as its only trigger.

Hands-on: build one error workflow for the whole company

The goal: an Error Handler workflow that automatically posts a message to the Slack #alerts channel when something fails. Set it up once and every workflow after that uses it.

  1. Create a new workflow and name it Error Handler

    Workflows in the left sidebar → + Add workflow. With the canvas still blank, press Ctrl+S to save and type the name Error Handler — pick something recognizable, or you will not find it later in the Settings dropdown.

  2. Add the Error Trigger node

    Press Tab on an empty part of the canvas (or the + in the top left) to open the nodes panel → search for Error Trigger → pick it. It lands on the canvas as this workflow's starting point. The Error Trigger has no parameters to set; dropping it in is all you do.

  3. Add a Slack node behind it

    Drag a connection out of the Error Trigger's right side and let go to open the nodes panel → search for Slack → pick the Send a message action. If you have not set up a Slack credential since Chapter 7, create one now (OAuth authorization for your Slack workspace).

  4. Slack node parameters: set Channel to #alerts

    The Channel field lets you pick an existing channel By Name, or you can type #alerts straight in. Create the channel in Slack first and invite the n8n bot into it (Slack channel → Integrations → Add App).

  5. The Slack message body (an expression fills in the error data)

    Switch the Text field to Expression mode (the fx button at the top right of the field) and paste in:

    ⚠️ Workflow failure
Workflow: {{ $json.workflow.name }}
Failed at node: {{ $json.execution.lastNodeExecuted }}
Error message: {{ $json.execution.error.message }}
Time: {{ $json.execution.startedAt }}
Open it here: {{ $json.execution.url }}

    The preview underneath shows a sample filled with dummy data; if it looks right, you are done.

  6. Save, then flip the Active toggle in the top right to green

    Press Ctrl+S → Active toggle ON. An error workflow that is not Active never fires — this is the number-one gotcha.

  7. That is it — this one is now shared across the company

    Once the Error Handler workflow is set up you leave it alone; there is nothing to tend day to day. It is called and runs once only when another workflow fails, and takes no resources at all the rest of the time.

Tip: If your team has PagerDuty / Opsgenie / email, wire an email node behind the Slack node, or use an IF node to judge "severity" — certain workflows (billing, say) also place a phone call when they fail, while everything else only posts to Slack. This Error Handler is your central error desk; add whatever you like to it.

Point every workflow at the error workflow

Once the Error Handler exists you still have to go into every production workflow one by one and point it at the handler — without that, a failure still goes unattended.

  1. Open the workflow you want to watch

    Click into it from the Workflows list and the canvas opens.

  2. The three-dot menu in the top right → Settings (or press Ctrl+,)

    The Workflow Settings panel opens, with options such as Timezone, Save Failed Executions and Error Workflow.

  3. In the Error Workflow dropdown, pick Error Handler

    The dropdown lists every workflow on your instance that contains an Error Trigger node. Find Error Handler and click it.

  4. Save Settings

    Save is at the bottom right of the panel. From now on this workflow triggers Error Handler automatically when it fails.

  5. Do this for every production workflow

    It is not applied automatically — every workflow needs its own setting. Make a list and work through it in one sitting, and set it on new workflows as you create them.

Warning: An error workflow fires only when the workflow that points at it fails. If the Error Handler workflow itself fails, it does not trigger itself recursively (that would be an infinite loop). So a node failing inside Error Handler is caught by nobody — keeping Error Handler simple, with few dependencies, is an important rule.

Retry on fail at the node level: let one node retry itself

Retry on fail is an automatic retry set on a single node — when that node fails, n8n waits a moment and calls again, waits and calls again, and only declares failure once the tries run out. It suits transient errors: an API returning 503 for a while, a network wobble, the other system restarting.

How to set it

  1. Open the panel of the node you want to retry

    For example the HTTP Request node, the Slack node, the Google Sheets node — any node can have it.

  2. Switch to the Settings tab

    The top of the node panel has two tabs, Parameters and Settings; click Settings.

  3. Turn Retry On Fail ON

    Two new fields appear: Max Tries and Wait Between Tries.

  4. Max Tries takes the number of attempts (the first run included)

    Common values are 3—5. 3 means at most three attempts (the 1st fails, wait, the 2nd fails, wait, and only the 3rd failure is fatal).

  5. Wait Between Tries takes milliseconds

    Common values run from 1000 (1 second) to 5000 (5 seconds). Too short and the other system gets no breathing room; too long and the workflow drags. For API rate-limit errors, use 5000 or more.

When retry is worth turning on

ScenarioGood candidate for retryWhy
The API returns 503 Service Unavailable Ideal Their service is down for a moment and usually comes back within seconds
The API returns 429 Too Many Requests (rate limit) Yes (with a longer Wait Between Tries) The block lifts after a wait
Network timeout / connection failure Yes A network blip is usually over in an instant
The API returns 401 Unauthorized (the credential expired) No It is just as expired on the hundredth call, and you waste time; go re-authorize the credential
The API returns 404 Not Found (the data really is not there) No The data does not exist, and retrying will not conjure it up
You wrote the expression wrong (undefined and the like) No A logic error does not turn correct because you repeat it
Warning: Retry repeats that node's operation — if the node sends mail, creates an order or charges a card, retrying sends, creates or charges again. This is the non-idempotent problem. Before you turn retry on, ask: "does doing this a second time have a side effect?" For nodes that do, either leave retry off or add guard logic that checks whether the record exists and only creates it if it does not.

The Wait node: pausing on purpose

The Wait node does one very simple thing — it stops the workflow here and only moves on when the time is up. Use it to slow things down, line up with a clock, or wait for an outside system to answer.

Wait has three modes

Resume modeWhen it resumesTypical scenario
After Time Interval Waits X seconds / minutes / hours / days 1 second between batches so you do not call too fast; wait 10 minutes after an alert, then check the status
At Specified Time Waits until a specific date and time (2026-08-20 09:00, say) "Carry on at 9:00 tomorrow morning", "do not send the invoice until the 1st of next month"
On Webhook Call Waits until an outside system calls the webhook back Send an approval link → carry on only after they click it; start a payment → confirm only after their callback

The most common pattern: Wait with Split In Batches to avoid a rate limit

Say you have to call an outside API for 500 records; firing them all at once gets you rate-limited. Do this instead: Split In Batches (batch size = 10) → HTTP Request → Wait 1 second → back to Split In Batches for the next batch. That is 10 requests a second, which usually sits inside what the other side allows. Chapter 16 has the full example.

Concept: During a Wait the workflow is suspended — no CPU, only a little memory. Waiting hours or days will not blow up your server. It is not the same as blocking inside code with setTimeout; it is n8n's built-in pause.
Clearing up a common misreading (65 seconds is not a ceiling): People online say "Wait maxes out at 65 seconds" — that is wrong. What the docs actually say is "wait times less than 65 seconds, the workflow doesn't offload execution data to the database", which means 65 seconds is the threshold where the mechanism switches, not a maximum: under 65 seconds the workflow is held in memory and nothing is written to the DB; at 65 seconds or more n8n serializes the execution into the DB and wakes it when the time comes. Community supports waits of hours or days just the same, and At Specified Time can wait until next month. The one risk: once you are past 65 seconds and on the DB path, an n8n running on the default SQLite loses pending executions if it restarts or the DB is corrupted — for long waits, pair it with an external Postgres / MySQL database.
One more mode: The Wait node also has an On Form Submitted mode — the workflow stops here until someone submits a form that n8n generated (approval or data-collection cases). The table above lists the three you will use most; Form is advanced, so learn it once you are comfortable with Webhook.

Execution records and debugging

The error was caught and the alert went out — next you open the Executions page and find out which node failed and why. The Executions page is where you do most of your debugging.

Where the Executions page is

  • Instance-wide: Executions in the main sidebar, showing the execution records of every workflow on the instance.
  • One workflow: open a workflow → the Executions tab at the top, showing only that one.

How to read a record

Color / iconWhat it means
Green Success Every node ran through, no errors
Red Error A node died partway and the workflow did not finish
Orange / yellow Running Running right now (a Wait node waiting, for example)
Gray Waiting Waiting for webhook, or At Specified Time — some external condition

Click into any red execution → you get a canvas-style view: the failed node is highlighted with a red border, and clicking it shows the input / output / error message from that run. This is the fastest way to find a bug.

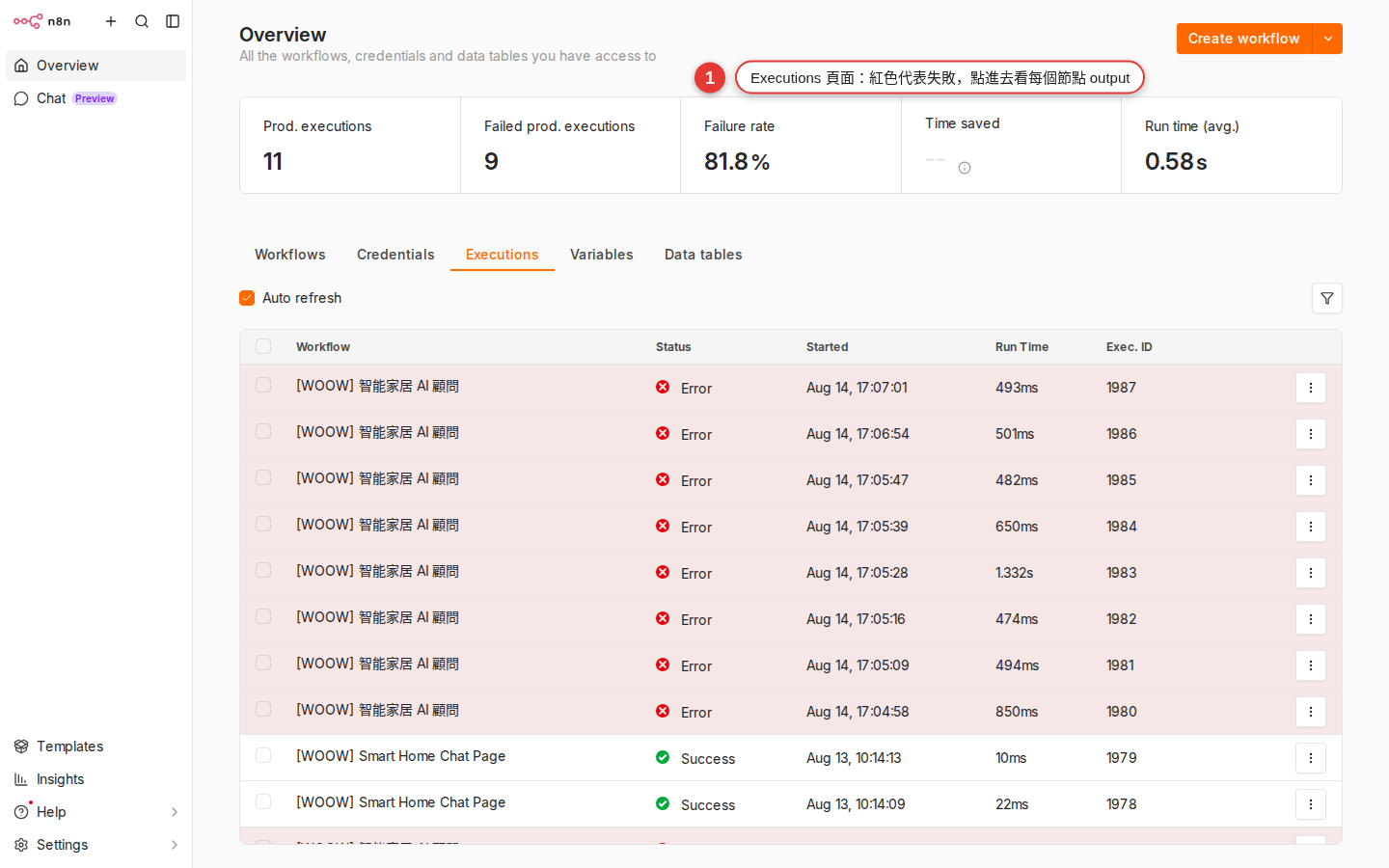

The Executions page showing both successful and failed execution records
Figure 17-1 The Executions page: green is a success, red is a failure. Click into a red one and you see which node died and what the error said.

Pin data: a handy way to save API calls while testing

Rerunning the workflow after every node change while you build keeps hitting the real APIs (Gmail, Slack, Sheets) — slow, and a waste of quota. Pin data lets you pin one successful output of a node; on later reruns the workflow takes the pinned data at that node and does not call the API for real.

How to use it: get one successful run → click that node's output → there is a pin icon above it → press it and the output is fixed. When you want to see what a downstream change did, rerun the workflow and the pinned node hands back the pinned data. Unpin it once you are done building, before you go live.

Tip: The Executions page only keeps the last few days (set by the instance's EXECUTIONS_DATA_MAX_AGE environment variable, 336 hours = 14 days by default). Ask IT to raise it if you want longer; or have Error Handler write the errors into Google Sheets / a database at the same time, and you keep them for good.

Common failure scenarios at a glance

Here are the errors you meet most often against what to do about them, so that next time a message comes up you can look up the fix directly:

Failure scenarioWhat to useApproach
429 Too Many Requests (calling too fast) Wait + Retry A Wait node to slow down; turn Retry on fail on for that node and push Wait Between Tries to 5000ms or more
503 Service Unavailable / a brief network error Retry Max Tries = 3~5, Wait Between Tries = 2000ms
401 Unauthorized (the credential expired) Error workflow (so you are told to handle it by hand) Retry is useless here; let the error workflow tell you → go to the Credentials page and re-authorize
Network timeout Retry + Wait Retry on fail plus a 5s wait, so you do not call again before the other side is back
Bad data format (an expression returns undefined) A Set or IF node upstream to validate Retry is useless (it is a logic error); give a default value with Set, or filter with IF, as the data comes in
Sub-workflow not found An error workflow alert The sub-workflow was deleted or its ID changed; the alert tells you to fix the reference in the Execute Workflow node
The Webhook Trigger never arrives An error workflow cannot catch this (nothing failed) + a scheduled check of your own A webhook nobody calls raises no error at all; add a Schedule workflow that checks every hour how many entries the last hour should have had
The Gmail Trigger polls too slowly Not an error, a design issue Change Poll Times to Every Minute; if you truly need it instant, find a service with a push webhook

Common error-handling pitfalls

Once error handling is set up you may hit the "I set it up and nothing happened" case. Work through these and you can usually rescue it yourself:

SymptomLikely causeHow to fix it
The workflow died but the error workflow never fired (1) That workflow's Settings has no Error Workflow set
(2) The Error Handler workflow is not Active		 Go back to the failing workflow → Settings → pick Error Handler in the Error Workflow dropdown; then open Error Handler and check that Active in the top right is green
Five retries and every one of them failed The error was never transient (an expired credential, data that was wrong to begin with, a logic error) Retry only postpones the failure; it solves nothing at the root. Read the error message in Executions — if it is 401 / 400 / 404 / a JS error, stop leaning on retry and fix the cause
The workflow sits at the Wait node and never moves (1) On Webhook Call mode, but the other side never called the URL, (2) a wait over 65 seconds on SQLite was lost in a restart, (3) At Specified Time has the wrong timezone (8 hours off the Timezone in the workflow's Settings) Check that the webhook URL you gave them is correct and that they really fire the callback; move long waits to an external Postgres database; check At Specified Time against Settings → Timezone
The Executions page does not show the run you just did (1) The page was not refreshed, (2) the workflow was only just made Active and the schedule has not come round, (3) the execution retention window has passed Press F5 in the browser; check whether the schedule's next time has arrived; have an admin check whether EXECUTIONS_DATA_MAX_AGE was shortened
Every value in the error workflow's Slack message is undefined The expression has the wrong field path Run the Error Trigger node once (trigger it with a workflow that really fails), look at what $json actually contains in the output panel, and copy the field names from there
The error workflow died too (the Slack node failed) Error Handler has no layer above it (it never recurses, by design) Keep Error Handler simple with few dependencies (stay away from APIs that fail easily); where it matters, add a second alert inside Error Handler (email as a backup when Slack fails)
You turned retry on and 3 copies of the email went out That node is a non-idempotent operation, so a retry repeats the side effect Turn retry off on nodes that send mail or create records, and put a "check whether it exists first" node in front instead; or let that node's failure fail the whole workflow and have the error workflow tell you to handle it by hand
The Error Workflow dropdown is empty and Error Handler is not in it Your Error Handler workflow has no Error Trigger node in it Go back to Error Handler and check that the first node is an Error Trigger (not Manual, not Webhook). n8n only lists workflows that contain an Error Trigger node in that dropdown

FAQ

Do I have to have an error workflow?
For production workflows (live, with people depending on them) we strongly recommend one, otherwise a failure genuinely goes unnoticed. While you are building or testing you can skip it — running by hand on the canvas shows you the error straight away. The test: does a failure of this workflow land on anyone else? If yes, bind an error workflow. If it is a one-off task of your own that you run by hand with a Manual Trigger, letting it die is fine and you can skip it for now.
Can retry cause repeated execution and side effects (two emails, two charges)?
It can, and this is the trap people miss most. Retry calls the failed node again exactly as it was — if that node sends mail, creates an order or charges a card, it does it again. The technical term is the non-idempotent problem. Design rule: only turn retry on when the API itself is idempotent (the same request gives the same result however often you send it — reads and updates, for example). For nodes that create records or trigger actions, either leave retry off or put a guard node in front that checks whether the thing already exists.
Does the Wait node use resources? Can I wait a whole day?
It costs very little. During a Wait the workflow is suspended: no CPU, only a little memory (the execution context is serialized into the DB). A whole day, even a week, is fine. One thing to watch: when n8n restarts (a version update, a server reboot) the waiting executions are restored and carry on waiting — as long as n8n is writing to the DB properly. On a self-hosted instance with no external DB, running on SQLite alone, waits of several days carry more risk across a restart; where it matters, use At Specified Time mode, or switch to "write the data to an external DB and let a separate Schedule sweep it".
Can several workflows share one error workflow?
Yes, and we strongly recommend it. You do not need one error workflow per workflow — a single Error Handler serving 100 workflows across the company is fine. {{ $json.workflow.name }} in the message shows which one died. The one exception: if one class of workflow has to alert different people (billing workflows tell finance, operations workflows tell customer support), build two or three error workflows and bind each to its own audience.
What happens if the error workflow itself dies?
It dies quietly and nobody catches it (n8n does not recursively trigger an error workflow for the error workflow's own failure, or you would have an infinite loop). So keep Error Handler as simple as you can and avoid depending on fragile third-party APIs. For more safety: put two alerts in Error Handler (Slack + email), so if one channel is broken the other still gets through. Or set up a separate Schedule that "checks every day at 8:00 am whether yesterday produced any error records" as a backstop.
What is "Continue On Fail", and how does it differ from retry?
Besides Retry On Fail, a node's Settings has an On Error option (older versions called it Continue On Fail), which means: when this node fails, do not let the whole workflow die — carry on down the line. Three choices: Stop Workflow (the default, it dies), Continue (the node fails but emits empty data and the run carries on), Continue (using error output) (the node grows an extra error branch and the failed data goes down it). Continue On Fail suits the case where one node failing is acceptable and you want to keep going — batch-processing 100 customers, 3 of them fail, and the other 97 still have to be finished. It combines with retry: 3 retries, still failing, then Continue moves on to the next batch.
Does an error workflow only fire for Active workflows? Does a failure from my own Execute Workflow count?
The docs are blunt about it: "You can't test error workflows when running workflows manually. The Error Trigger only runs when an automatic workflow errors." A failure from a manual Execute Workflow never starts the Error Trigger; this is not an option, it is a hard rule. So to test an error workflow you have to: (1) set the parent workflow to Active, (2) let a Schedule / Webhook / Event Trigger start it "automatically", (3) make it genuinely fail. The design is deliberate — it keeps Slack from being carpet-bombed while you build — but it also means you cannot test an error workflow by pressing a button on the canvas. Only a real, failing Active workflow triggers it.
How do I use the Wait node's On Webhook Call mode?
It is for workflows that wait for outside confirmation. Once set, the Wait node produces a URL (one for Test, one for Production), and the workflow stops here until that URL is called. The classic case: the workflow emails an approval link and the button in the email points at the Wait node's URL — your manager clicks the button → the Wait node receives the webhook → the workflow carries on into the "approved" logic. This is advanced; After Time Interval is enough for most people to start with. For the details, read it alongside the webhook material in Chapter 22.
What is left to do once error handling is set up?
Two things: (1) read the Executions page regularly — even with error-workflow alerts, you still want to watch the red records for trends (is one node failing over and over? is there a stretch of the day thick with rate limits?). (2) Build a knowledge base of errors — after you solve an unusual one, write down "error message → cause → fix" so the next occurrence is a lookup. The error message quick reference in the appendices is exactly that, collected for the common cases.
